H12-811_V2.0 Exam Questions & Answers

On Huawei devices, the undo command is used to remove a previously applied configuration, disable a function, or restore a parameter to its default state. In option B, undo ip address is a valid interface-view command that removes the IP address configured on the interface. In option C, undo portswitch is also a valid interface command on switch interfaces that converts a Layer 2 interface into a Layer 3 interface when supported by the device. In option D, undo sysname restores the device name to the default hostname, which is valid in system view.

Option A is incorrect because system-view is a command used to enter system view from user view, but undo system-view is not a valid command for exiting that view. Exiting system view is done with commands such as quit, return, or by using shortcut keys. This question checks the understanding that undo only applies to configurable features and parameters, not to view-switching commands in the CLI hierarchy.

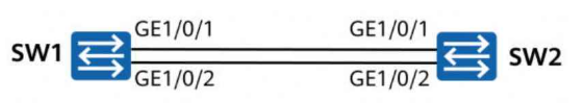

For an Eth-Trunk operating in manual load-balancing mode, the logical Eth-Trunk interface can remain Up as long as at least one member link is operational and properly added to the trunk. Therefore, if GE1/0/1 is Up and GE1/0/2 is Down, Eth-Trunk 1 can still stay Up, making option A correct.

Option B is incorrect because member interfaces in a manual Eth-Trunk do not need to be in identical physical states for the trunk itself to remain operational. Option C is also incorrect because there is no inherent rule here that two-member trunks must have both links active unless a separate minimum-links mechanism has been explicitly configured. No such condition is stated in the question. Option D is false because one of the key purposes of Eth-Trunk is redundancy; requiring all member interfaces to be Up would defeat that design advantage. HCIA-Datacom teaches that Eth-Trunk enhances link reliability by allowing continued forwarding when part of the bundle fails, provided the trunk still has an active forwarding member.

Several upper-layer management and file transfer protocols use SSH as their secure transport foundation. SFTP is the SSH File Transfer Protocol and operates over SSH, making option C correct. STelnet is secure Telnet implemented over SSH, so option D is also correct. NETCONF commonly uses SSH as its transport protocol for secure configuration management and device orchestration, making option B correct as well.

Option A, DNS, does not use SSH as its normal transport protocol. Traditional DNS operates over UDP or TCP port 53, depending on the query or transfer type. Although DNS security extensions and encrypted DNS variants exist, they are not based on SSH. HCIA-Datacom emphasizes the role of SSH in secure network management because it replaces insecure plaintext protocols and provides confidentiality, integrity, and authentication. In practical Huawei enterprise deployments, SSH-based protocols are widely used for interactive device login, automated configuration delivery, and secure file operations. This question tests recognition of management protocols that inherit SSH's secure channel rather than protocols that operate independently at the application layer.

This statement is true. Traditional VLANs use a 12-bit VLAN ID, which means that only about 4094 usable VLANs are available. In modern data centers, especially in cloud and virtualization environments, that scale is often insufficient because a very large number of tenants, services, and virtual machines need isolated network segments.

VXLAN addresses this limitation by introducing the VNI (VXLAN Network Identifier), which is 24 bits long. This allows support for up to about 16 million logical segments, greatly expanding the number of isolated Layer 2 networks that can be created across an IP underlay. Because of this, VXLAN is widely used in modern data centers to provide scalable tenant isolation, flexible service deployment, and large Layer 2 extension across physical boundaries. HCIA-Datacom highlights VXLAN as a key overlay technology that solves the VLAN scale problem in virtualized data center environments. It allows a much larger number of VMs and tenants to be isolated than traditional VLAN-based solutions can support, making it essential for modern cloud-oriented and large-scale data center networking.

All four statements are correct. The code uses the Paramiko library to automate SSH login to a network device. import paramiko and import time load the Python modules required for SSH communication and delay control, so option C is correct. The statement ssh = paramiko.SSHClient() creates an SSH client object, and ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy()) allows the client to accept an unknown host key automatically in this example scenario.

The command ssh.connect('192.168.1.254', username='python', password='Huawei@123') establishes an SSH connection to the target device, so option B is correct. Then channel = ssh.invoke_shell() opens an interactive shell channel, which is commonly used to send CLI commands and receive output just as an administrator would in a terminal session, making option D correct. The command channel.send('screen-length 0 temporary\n') disables page-by-page output for the current session, which is useful in network automation. Finally, ssh.close() closes the SSH session and releases the connection, so option A is correct. HCIA-Datacom automation knowledge often uses Paramiko examples to demonstrate basic Python-based device O&M.
