Sample NS0-516 Questions
Practice with real exam-style questions, each with the verified correct answer and explanation.

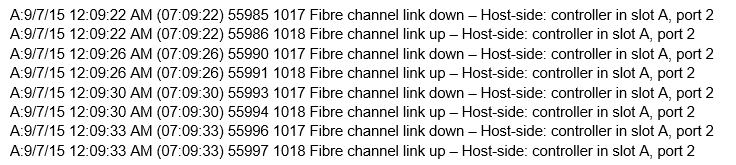

Click the Exhibit button.
Referring to the exhibit, which three steps would you take to solve the problem shown in the event log? (Choose three.)
Step: Replace the SFP (Small Form-factor Pluggable) module in the controller port.
Reason: Faulty SFPs can cause link issues and errors.
Swap Out the FC Cable:
Step: Replace the Fibre Channel cable connecting the controller port.
Reason: Damaged or faulty cables can lead to intermittent connectivity issues.
Move the Connection to Another Controller Port:
Step: Connect the Fibre Channel cable to a different port on the controller.
Reason: The current port may be faulty, and using another port can help isolate the issue.
NetApp SANtricity System Manager User Guide
NetApp hardware installation and troubleshooting guides
A customer has an E5760 array with a 30-drive Dynamic Disk Pool (DDP) that uses 800 GB SSD drives. The customer needs to expand the pool by one drive but has only a 1.6 TB SSD drive available.
In this scenario, what happens when the customer attempts to add the 1.6 TB drive to the existing pool?
The pool is expanded by 800 GB
When a larger drive (1.6 TB) is added to a Dynamic Disk Pool (DDP) that consists of smaller drives (800 GB), the pool expands only by the size of the existing drives in the pool. Hence, in this scenario, the pool would be expanded by 800 GB.
A junior administrator recently made changes to an E-Series system. As a result of these changes, the management host lost the ability to manage the E-Series system through in-band management, but the host still has access to the E-Series data volumes.
In this scenario, what caused this issue?
If the management host loses the ability to manage the E-Series system through in-band management but still has access to data volumes, the most likely cause is that the access volume was un-mapped. The access volume is crucial for in-band management as it provides a path for management commands.
In-band management relies on this special volume to communicate management commands between the host and the storage system. If the access volume is un-mapped, the management interface on the host will no longer be able to send these commands, even though data volumes remain accessible.
NetApp E-Series SANtricity Storage Manager Documentation
NetApp Knowledge Base Articles
You want to find detailed information about the devices that are connected to the Brocade switch.
In this scenario, which command would accomplish this goal?
nsshow
The nsshow command on a Brocade switch provides detailed information about devices connected to the switch. It displays the name server database, which includes information about all devices (initiators and targets) that are logged into the fabric.
Which command will display which Brocade switches are connected into a fabric?
Purpose: The command to display Brocade switches connected into a fabric.
Command: fabricshow
Usage: Displays detailed information about all the switches in the fabric, including domain IDs, WWNs, and other relevant information.
