CKAD Exam Questions & Answers

Solution:

Below is an exam-style, step-by-step solution (commands + verification). Follow exactly on host ckad000.

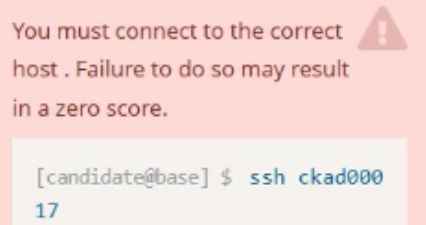

0) Connect to the right host

ssh ckad000

(Optional but good sanity check)

kubectl config current-context

kubectl get ns

1) Inspect the existing Deployment (to know its labels/ports)

kubectl -n prod get deploy nginx-deployment

kubectl -n prod get deploy nginx-deployment -o wide

Check what labels the Pod template already has (important for the Service selector):

kubectl -n prod get deploy nginx-deployment -o jsonpath='{.spec.template.metadata.labels}{'\n'}'

Check container ports (so we expose the correct targetPort):

kubectl -n prod get deploy nginx-deployment -o jsonpath='{.spec.template.spec.containers[0].ports}{'\n'}'

If ports output is empty, it's still often nginx on 80, but the safest is to confirm by describing a pod later.

2) Update Deployment to 2 replicas

Fastest:

kubectl -n prod scale deploy nginx-deployment --replicas=2

Verify:

kubectl -n prod get deploy nginx-deployment

3) Add label role=webFrontEnd to the Pod (Pod template label)

You must add it under:

spec.template.metadata.labels

Use a patch (quick + safe):

kubectl -n prod patch deploy nginx-deployment \

-p '{'spec':{'template':{'metadata':{'labels':{'role':'webFrontEnd'}}}}}'

Verify the Deployment template now includes it:

kubectl -n prod get deploy nginx-deployment -o jsonpath='{.spec.template.metadata.labels}{'\n'}'

Now verify the running Pods have the label (important!):

kubectl -n prod get pods --show-labels

If the label doesn't show on pods immediately, wait for rollout:

kubectl -n prod rollout status deploy nginx-deployment

kubectl -n prod get pods --show-labels

4) Create a NodePort Service rover exposing the Deployment's Pods

4.1 Get a reliable target port

Try to read containerPort:

kubectl -n prod get deploy nginx-deployment -o jsonpath='{.spec.template.spec.containers[0].ports[0].containerPort}{'\n'}'

If this prints a number (commonly 80), use it as --target-port.

If it prints nothing/empty, check a pod:

POD=$(kubectl -n prod get pod -l role=webFrontEnd -o jsonpath='{.items[0].metadata.name}')

kubectl -n prod describe pod '$POD' | sed -n '/Containers:/,/Conditions:/p' | sed -n '/Ports:/,/Environment:/p'

Assuming nginx is on 80 (most common), create the service:

kubectl -n prod expose deploy nginx-deployment \

--name=rover \

--type=NodePort \

--port=80 \

--target-port=80

If your nginx container port is different (e.g., 8080), change --target-port=8080 accordingly.

5) Verify Service + endpoints (critical)

kubectl -n prod get svc rover -o wide

kubectl -n prod describe svc rover

kubectl -n prod get endpoints rover -o wide

You should see 2 endpoints (matching 2 pods).

Also confirm the pods are Ready:

kubectl -n prod get pods -l role=webFrontEnd -o wide

Quick ''CKAD checkpoints''

Deployment in prod has replicas=2

Pod template has label role=webFrontEnd

Service rover in prod is NodePort

Service endpoints point to the nginx pods

Solution:

Solution:

ssh ckad00026

Your job is to edit /home/candidate/credible-mite/web.yaml so it uses APIs supported on Kubernetes 1.29+, then deploy it into namespace garfish.

Because I can't see your file from here, the most reliable exam approach is:

run a server-side dry-run to reveal the exact deprecated/removed APIs and schema errors

edit the manifest to the modern API versions/fields

re-run dry-run until it passes

apply for real and verify rollout

1) Go to the manifest and run a server-side dry-run

cd /home/candidate/credible-mite

ls -l

sed -n '1,200p' web.yaml

Make sure the namespace exists:

kubectl get ns garfish || kubectl create ns garfish

Now run a server-side dry-run (this catches removed APIs on the cluster):

kubectl apply -n garfish -f web.yaml --dry-run=server

Whatever errors you get here tell you exactly what to fix.

2) Fix the common v1.15 v1.29 API deprecations

Edit the file:

vi web.yaml

Below are the most common objects from older manifests and how to update them for 1.29+.

A) Deployments / DaemonSets / StatefulSets

Old (v1.15 often used):

extensions/v1beta1 or apps/v1beta1 or apps/v1beta2

New:

apiVersion: apps/v1

Also in apps/v1, .spec.selector is required and must match the pod template labels.

Example conversion:

apiVersion: apps/v1

kind: Deployment

metadata:

name: web

spec:

replicas: 2

selector:

matchLabels:

app: web

template:

metadata:

labels:

app: web

spec:

containers:

- name: web

image: nginx

Key rule:

spec.selector.matchLabels must exactly match spec.template.metadata.labels (at least for the keys you select on).

B) Ingress

Old:

apiVersion: extensions/v1beta1 (or networking.k8s.io/v1beta1)

New:

apiVersion: networking.k8s.io/v1

Required changes:

spec.rules.http.paths[].pathType is required (usually Prefix)

backend format changes from serviceName/servicePort to service.name/service.port.number (or .name for named ports)

Old backend:

backend:

serviceName: web

servicePort: 80

New backend:

backend:

service:

name: web

port:

number: 80

Full path example:

apiVersion: networking.k8s.io/v1

kind: Ingress

metadata:

name: web

spec:

rules:

- host: example.local

http:

paths:

- path: /

pathType: Prefix

backend:

service:

name: web

port:

number: 80

C) CronJob

Old:

apiVersion: batch/v1beta1

New:

apiVersion: batch/v1

Most fields stay the same; just update apiVersion.

D) PodDisruptionBudget

Old:

policy/v1beta1

New:

policy/v1

spec.selector/minAvailable/maxUnavailable remain, but apiVersion changes.

E) RBAC

Usually already:

rbac.authorization.k8s.io/v1 (this is fine)

F) Removed APIs you must delete/replace

If you see these in a v1.15-era manifest, they are removed in modern clusters:

PodSecurityPolicy (policy/v1beta1) is removed. You cannot deploy it on 1.29+. Remove it from the manifest (or replace with whatever your environment uses, but for CKAD tasks you usually delete PSP sections from the file).

Some old admission/alpha resources also removed.

If dry-run complains ''no matches for kind ... in version ...'', that's your cue.

3) Re-run dry-run until it succeeds

After you edit:

kubectl apply -n garfish -f web.yaml --dry-run=server

Keep iterating until there are no errors.

4) Deploy for real

kubectl apply -n garfish -f /home/candidate/credible-mite/web.yaml

5) Verify everything in namespace garfish

List what was created:

kubectl -n garfish get all

kubectl -n garfish get ingress 2>/dev/null || true

If there is a Deployment, verify rollout:

kubectl -n garfish get deploy

kubectl -n garfish rollout status deploy --all

Check pods/events if something fails:

kubectl -n garfish get pods -o wide

kubectl -n garfish describe pod

kubectl -n garfish get events --sort-by=.lastTimestamp | tail -n 30
