300-830 Exam Questions & Answers

Webex Contact Center APIs use OAuth 2.0 for authentication and authorization. Cisco's developer documentation for Webex and Webex Contact Center describes integrations as the mechanism used to request permission and obtain access tokens for API calls, using the OAuth 2.0 authorization framework rather than static API keys or basic HTTP authentication. OAuth 2.0 gives the platform scoped access control, token issuance, and administrative consent behavior appropriate for enterprise automation. Mutual TLS may be used in specific transport-security or trunking contexts, but it is not the authorization specification for normal Webex Contact Center REST APIs. Basic HTTP authentication would require sharing credentials directly with the client and does not match the Webex developer model. API key authentication is also not the supported authorization pattern for these Contact Center APIs. The typo in the original option has been corrected to OAuth 2.0. Reference: Webex Developer, Integrations and Authorization; Webex Contact Center API documentation.

For an email digital channel that routes to live agents, the engineer must create the channel asset and create the Webex Contact Center entry point. Cisco's digital channel setup process starts with channel assets in Webex Connect, because assets define the external channel identity and connection, such as an email mailbox or service provider configuration. The Contact Center side then requires entry points so interactions can enter the routing and queueing path. Templates can accelerate flow design, but they are not mandatory configuration objects in every email channel deployment. Onboarding the company is a broader tenant or Webex Connect setup activity and is not the specific action required once the organization already contains several channels. Authorizing nodes is a prerequisite for digital-channel setup, but this question asks what actions are part of configuring the email channel itself. The two required channel configuration actions are creating channel assets and creating entry points. Reference: Cisco Help, Set up digital channels in Webex Contact Center; Webex Connect Help, Email - WXCC.

SMS-based one-time passcode authentication requires generating the passcode and sending it to the user over SMS. Webex Connect includes a Generate OTP node for creating the random passcode and an SMS node for delivering the generated value to the customer's mobile number. Those two nodes form the minimum authentication workflow. A Profile node can retrieve or update customer profile information but does not generate or deliver the passcode. A Data Parser node can parse structured responses, which is useful after API calls, but it is not required to create and transmit an OTP. An Evaluate node can compare the customer's submitted passcode to the stored/generated value later in the flow, but the question asks which two nodes are needed to implement authentication via SMS using a randomly generated passcode. The foundational nodes are Generate OTP and SMS. Reference: Webex Connect Help, Generate OTP node; SMS Node; Webex Connect flow builder documentation.

Webex Connect provides two relevant troubleshooting tools for failed transactions: Debug Console and Export Logs. Cisco's Webex Connect Debug Console documentation states that it displays transaction details and historical logs for API, flow, and rule executions, including status, timestamps, service name, transaction source, and errors. That makes it the interactive tool for investigating a specific failure path. Export Logs is the bulk-download mechanism for inbound and outbound transaction logs across channels and can cover the last seven days or more depending on log availability and tenant configuration. Reports are useful for aggregated channel performance and trends, but not for pulling all failed transactions from a specific service with enough technical detail. Watchtower is not the primary transaction log export mechanism in the option set. Templates are reusable message or channel assets, not troubleshooting tools. For a seven-day failure investigation, Debug Console plus Export Logs is the correct pair. Reference: Webex Connect Help, Debug Console; Webex Connect Help, Export Logs.

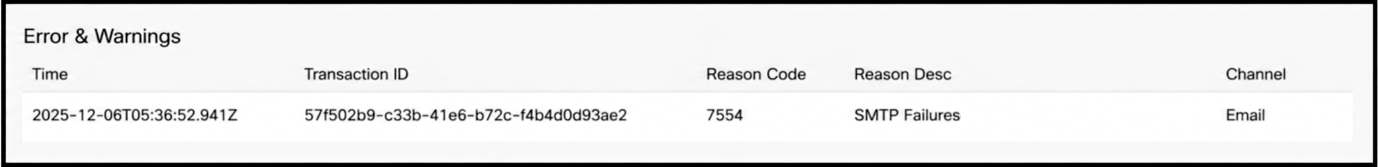

The Debug Console exhibit shows an SMTP failure for an outbound email transaction. In Webex Connect email asset configuration, the service provider settings must match the SMTP connection requirements, including the server address, port, authentication method, and security method. The failure pattern represented in this question points to connection-level SMTP mistakes: an incorrect SMTP server port and an incorrect SMTP security method. Those two errors commonly prevent the platform from establishing or negotiating the SMTP session at all. An incorrect username would usually produce an authentication failure after the connection is made, and an incorrect server address would present a DNS or host connection error rather than the specific pairing shown. The asset not being registered to Webex Engage affects channel registration and conversation use cases, but the exhibit specifically identifies SMTP failure in the email channel. Therefore the port and security method are the two configuration mistakes. Reference: Webex Connect Help, Email - WXCC; Webex Connect Help, Debug Console.
